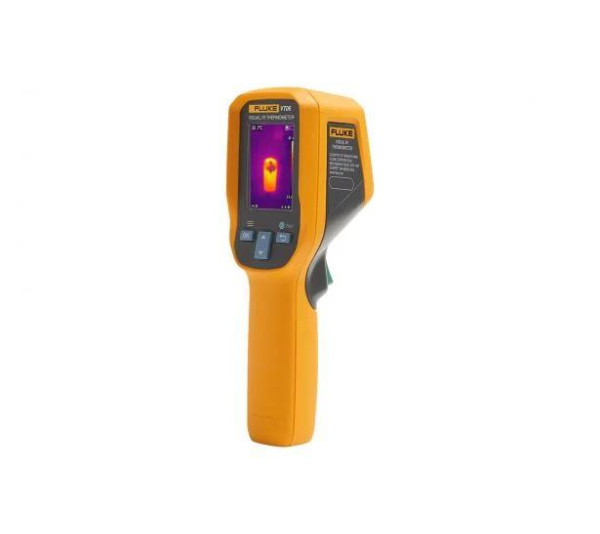

Description Specifications: Fluke VT06 Visual IR Thermometer Thermal image and optics VT08 VT06 Infrared resolution 120×90 IR frequency band 7.5~14 μm(long wave) Frame rate 9 Hz Thermal sensitivity/NETD <60 mk Field of view (H x V) 50° x 37.5° Spatial resolution 7.6 mrad Focus system Focus free Minimum focusing distance 0.5 m (19.7 in) Visible light Visible resolution 320×240 NA Visible FOV (H x V) 53° x 41° NA Image display and storage Image mode Thermal image Visible image PIP Thermal image Palettes Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal, Grayscale Internal storage >28GB (>100000 images) *14GB Internal Storage for VT06/VT08 manufactured before 6 Aug 2022. File format JPEG compression format (.jpg) PIP mode Yes No Temperature measurement Temperature range -20 °C to 400 °C [-4 °F to 752 °F] (not specified for below -10 °C) Temperature accuracy ±2°C or 2% @ 23°C±5°C, whichever is greater Emissivity Adjustable Background temperature compensation Yes Auto high-/low-temperature capture Yes Center point temperature Yes Alarm Maximum/minimum temperature alarm in full screen Interface and lens Visible lens Yes No Flashlight Yes No Infrared lens Yes Laser sighting Yes Type-C interface Yes TF card slot No Tripod interface Yes Mobile App No Power system Battery type Rechargeable Li-ion battery, unremovable Battery operation time ≥5 hrs (VT08) ≥8 hrs (VT06) Actual battery life depends on environment and settings Charging Time <2.5 hrs to full Battery charging temperature 0 °C to 45 °C Battery charging system Charge in the machine (the battery is not removable) AC adapter Include power supply, universal adapter Output: 5 VDC, 2 A Power saving mode Yes Environmental specifications Operating temperature -10 °C to 50 °C Storage temperature -40 °C to 70 °C Operating altitude 2000 m (1.24 mi) Storage altitude 12 000 m (7.5 mi) Others Warranty 1 year Standard accessories Wrist strap, quick reference guide, charger adapter, Type-C data cable, data-downloading card Display 6.096 cm (2.4-inch) LCD Language English Size 20.4 cm x 6.6 cm x 7.6 cm Weight 0.36 kg 0.35 kg Relative humidity ≤90%, non-condensing Safety Safety standards IEC 61010-1: Pollution Degree 2 Laser IEC 60825-1: Class 2, 650 nm, <1 mW Battery IEC 62133-2, UN 38.3 Protection class IEC 60529: IP65 (with Type-C port closed) Drop test 2 m Electromagnetic Compatibility (EMC) International IEC 61326-1: Industrial Electromagnetic Environment CISPR 11: Group 1, Class A
