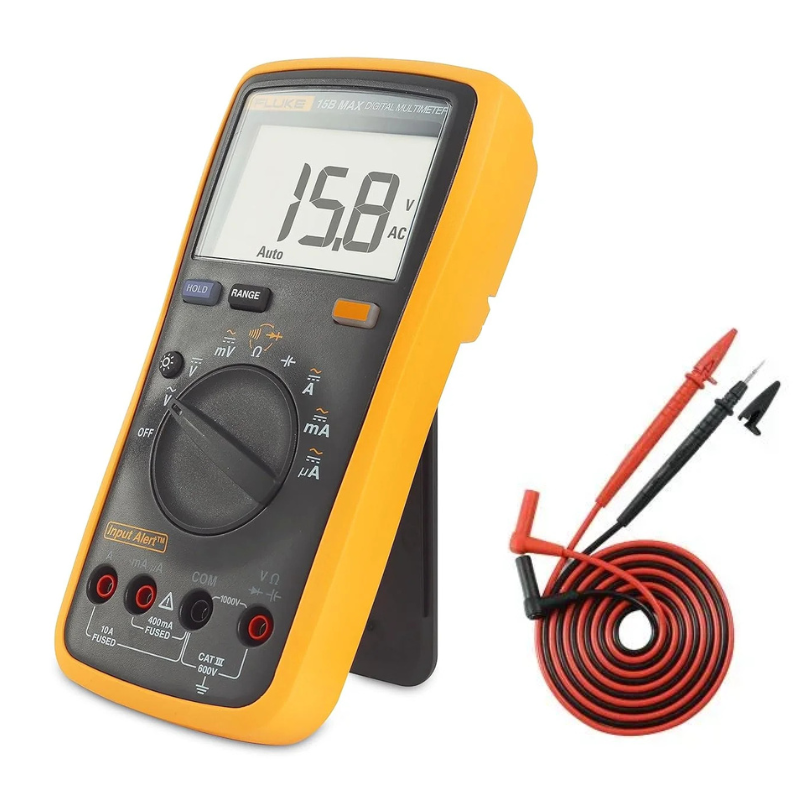

FLUKE MULTIMETER 15B MAX KIT WITH TL75 TL31 TEST LEADS SET

Description Key Features Audible and visual alarm for incorrect connections Test leads with fines tips for circuit board testing Simple interface to wake meter from sleep mode by activating any buttons Voltage: 6000-count reading Capacitance range: 2000uF Safety rating: CATIII 600V Product Specifications Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 % Accuracy specifications take the form of: ± ([% of Reading] [Number of Least Significant Digits])   Function Range Resolution Accuracy AC Volts (40 Hz to 500 Hz)1 6.000 V 60.00 V 600.0 V 1000 V 0.001 V 0.01 V 0.1 V 1 V 1.0 % 3 AC Millivolts 600.0 mV 0.1 mV 3.0 % 3 DC Volts 6.000 V 60.00 V 600.0 V 1000 V 0.001 V 0.01 V 0.1 V 1 V 0.5 % 3 DC Millivolts 600.0 mV 0.1 mV 1.0 % 10 AC Current μA (40 Hz to 400 Hz)2 400.0 μA 4000 μA 0.1 μA 1 μA 1.5 % 3 AC Current mA (40 Hz to 400 Hz)2 40.00 mA 400.0 mA 0.01 mA 0.1 mA 1.5 % 3 AC Current A (40 Hz to 400 Hz)2 4.000 A 10.00 A 0.001 A 0.01 A 1.5 % 3 DC Current μA2 400.0 μA 4000 μA 0.1 μA 1 μA 1.5 % 3 DC Current mA2 40.00 mA 400.0 mA 0.01 mA 0.1 mA 1.5 % 3 DC Current A2 4.000 A 10.00 A 0.001 A 0.01 A 1.5 % 3 Diode Test3 2.000 V 0.001 V 10% Resistance (Ohms)5 400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ 0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ 0.5 % 3 0.5 % 2 0.5 % 2 0.5 % 2 0.5 % 2 1.5 % 3 Capacitance6 40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 2000 μF 0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF 2 % 5 2 % 5 5 % 5 5 % 5 5 % 5 5 % 5 Continuity Threshold — — 70Ω Backlight — — Yes 1 All ac, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified. 2 Typical burden voltage: DC/AC Current µA: 100 µV / µA; DC/AC Current mA: 2 mV/mA; DC/AC Current A: 0.03 V/A 3Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA 4Use Type K thermocouple 5 Typical open circuit test voltage is 0.54 V, maximum short circuit current is 1.8 mA 6Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range). 7 Typical means when the frequency is at 50 Hz or 60 Hz and the duty cycle is between 10 % and 90 %. Input Characteristics Function Overload Protection Input Impedance (Nominal) Common Mode Rejection Ratio Normal Mode Rejection Ratio AC Volts 1000 V 1 >10 MΩ, <100 pF >60 dB at 50 Hz or 60 Hz — AC Millivolts 1000 V 1 >1 MΩ, <100 pF >80 dB at 50 Hz or 60 Hz — DC Volts 1000 V 1 >10 MΩ, <100 pF >100 dB at 50 Hz or 60 Hz >60 dB at 50 Hz or 60 Hz DC Millivolts 1000 V 1 >1 MΩ, <100 pF >80 dB at 50 Hz or 60 Hz — 1106 V Hz max General Specifications Maximum voltage between any Terminal and Earth Ground 600 V Maximum differential voltage between V and COM terminals 1000V Display (LCD) 6000 counts, updates 3/sec Battery Type 2 AA, IEC LR6 Battery life 500 hours minimum Temperature Operating 0 °C to 40 °C; Storage -30 °C to 60 °C Relative Humidity Operating Humidity Non-condensing (<10 °C); ≤90 % RH at 10 °C to 30 °C; ≤75 % RH at 30 °C to 40 °C Operating Humidity, 40 MΩ range ≤80 % RH at 10 °C to 30 °C; ≤70 % RH at 30 °C to 40 °C Altitude Operating 2000 m; Storage 12000 m Temperature Coefficient 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) Fuse protection for current inputs 440 mA, 1000 V, fast-blow, use only Fluke specified parts. 11 A, 1000 V, fast-blow, use only Fluke specified parts Size (HxWxL) 183 mm x 91 mm x 49.5 mm Weight 455 g Ingress Protection IP40 Safety IEC 61010-1, IEC61010-2-030: CAT III 600 V, Pollution Degree 2 Electromagnetic Environment IEC 61326-1: Portable Electromagnetic Compatibility (EMC) Only applicable in Korea Class A Equipment (Industrial Broadcasting & Communication Equipment)1 1Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
