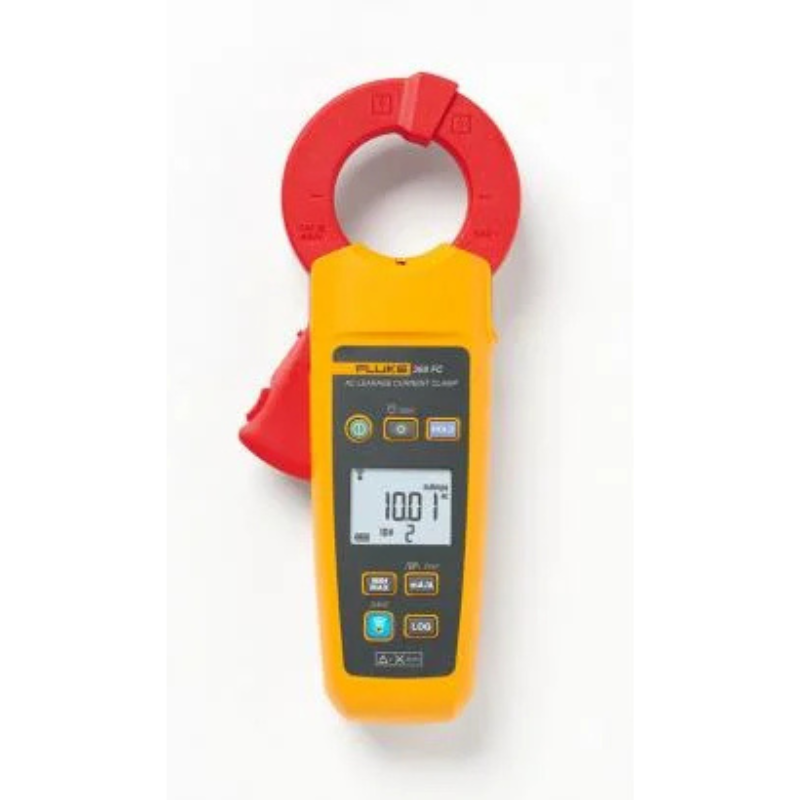

Description Product overview: Fluke 368 FC Leakage Current Clamp Meter Reduce downtime – Find leakage currents without taking equipment offline. The Fluke 368 FC true-rms leakage current clamp meter helps users detect, document, record and compare leakage current readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, all without taking equipment off line. The Fluke 368 FC has a large 40 mm diameter jaw for work with large conductors. The clamp’s jaw is fully shielded to accurately capture very small leakage signals, and to minimize external electromagnetic interference. The 368 FC also offers wireless data connectivity via Fluke Connect. As part of Fluke Connect — the industry’s largest system of software and more than 40 wireless test tools — the 368 FC allows you to track changes in leakage current over time, helping to identify potential problems before they turn into major failures. Electrical Specifications Measurement function Alternating current AC ampere range 3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A mA / A: manual selection 3 mA / 30 mA / 300 mA: automatic selection 3 A / 30 A / 60 A: automatic selection Range / Resolution 3 mA¹ / 0.001 mA 30 mA / 0.01 mA 300 mA / 0.1 mA 3 A / 0.001 A 30 A / 0.01 A 60 A / 0.1 A Accuracy – filter activated (40 to 70 Hz), filter off (40 to 1 kHz)² 3 mA – 30 A 60 A 1% 5 digits 2% 5 digits Frequency 40 Hz to 1 kHz Crest Factor 3 After calibration accuracy is valid for one year. Accuracy is expressed as ± (% of reading digits). Reference conditions 23 ±5 °C and a maximum relative humidity of 80%. ¹The minimum value is 10 μA rms. ²Outside of the TC / °C 18 °C to 28 °C, 0.02 1 Physical Display (LCD) Digital readout: 3300 count Display refresh rate 4 times / sec Maximum conductor diameter 40 mm Dimensions 234 x 101 x 46 mm Weight 500 g Battery 2 AA, IEC LR6, NEDA 15A, alkaline Battery life Expected battery life, without using backlight and spotlight, is more than 150 hours Automatic shut-down Meter automatically shuts down after 15 minutes of inactivity Safety and Environmental Specifications General safety IEC 61010-1: Pollution Degree 2 Measurement safety IEC 61010-2-032: CAT III 600 V / CAT IV 300 V Operating temperature -10 °C to 50 °C Storage temperature -40 °C to 60 °C Operating humidity Non-condensing (<10 °C) 90% relative humidity (10 °C to 30 °C) 75% relative humidity (30 °C to 40 °C) 45% relative humidity (40 °C to 50 °C) Protection class IEC 60529: IP30 (jaw closed) Operating altitude 2000 m Storage altitude 12000 m Current sensor action category IEC 61557-13: Class 2, ≤30 A / m Electromagnetic compatibility (EMC) International IEC 61326-1 Industrial Electromagnetic Environment CISPR 11 Group 1 Class B Group 1 Generated inside the equipment and / or use radio frequency energy associated with conducting the energy for the device’s own internal functions is essential. Class B Equipment for home appliances and residential buildings directly connected to a low voltage power supply network equipment. When this device is connected to a test object, it may exceed the emission levels produced by CISPR 11 requirements. Korea (KCC): A type of equipment (radio and communication equipment industry) Class A This product meets the requirements of industrial electromagnetic equipment, vendors or users should be aware of this. This device is intended for use in a commercial environment, instead of the home environment. USA (FCC): 47 CFR 15 B Subpart. In accordance with section 15.103 provides that the products are considered tax-free device.
