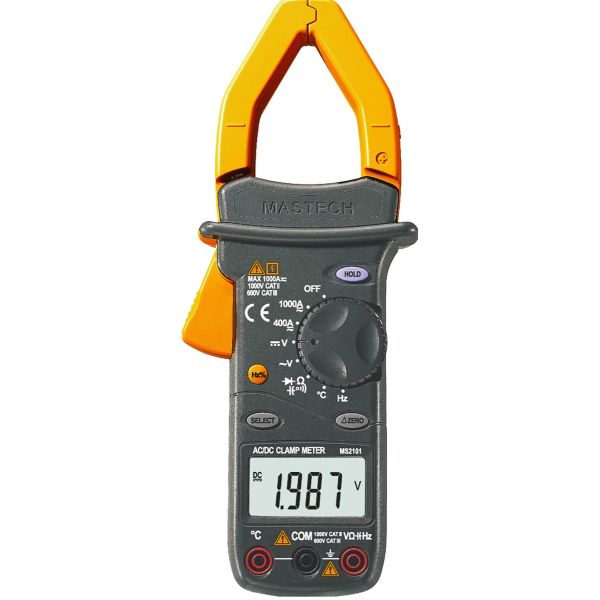

Description Key Features: Multifunctional Measurement: DC/AC voltage, DC/AC current, resistance, capacitance, frequency, duty cycle, and temperature. Temperature Measurement: -40°C to 750°C. Auto and Manual Ranging: Offers flexibility and ease of use. Max Jaw Opening: Ø42mm/1.7″. Max Display: 4000 counts for detailed readings. Data Hold: Freeze displayed measurements for easy reference. Relative Measurement: Eliminate low resistance or impedance on the test leads during measurements. Safety Certified: CAT II 1000V / CAT III 600V rating for secure operation. Additional Features: Includes continuity buzzer, diode test, auto power off, and low battery display. Specifications: DC Voltage: 400mV to 1000V AC Voltage: 4V to 750V DC Current: 400A to 1000A AC Current: 400A to 1000A Resistance: 400Ω to 40MΩ Capacitance: 4nF to 100µF Frequency: 40Hz to 100kHz Duty Cycle: 0.1% to 99.9% Temperature: -40°C to 750°C Description Value Safety Rating CAT III 600V, CAT II 1000V Display counts 4000 Auto Ranging Yes Jaw Size Ф42mm 1.7″ Insulation Voltage No True RMS No AC Voltage 750V AC Current 1000A DC Voltage 1000V DC current 1000A Non-Contact Voltage No Resistance 40MΩ Capacitance 100μF Frequency 100kHz Frequency Yes Duty Cycle Yes Diode Yes Continuity Yes Display Backlight No Work Light No Data Hold Yes MAX/MIN/AVG NO Relative Measurement Yes Bar Graph No Insulation Test No Low Pass Filter No Low Impedance No Dual Display No Peak Measurement Yes Auto Power Off Yes Temperature Yes Type K Temperature -40~750°C Specifications Range Resolution Accuracy DC Voltage 400mV/4V/40V/400V 0.1mV/1mV/10mV/0.1V ±(0.7% 1) 1000V 1V ±(0.8% 3) AC Voltage 4V/40V/400V 1mV/10mV/0.1V ±(0.8% 5) 750V 1V ±(1.0% 10) DC Current 400A/1000A 0.1A/1A ±(3.0% 3) AC Current 400A/1000A 0.1A/1A ±(3.0% 3) Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ 0.1Ω/1Ω/10Ω/0.1kΩ/1kΩ ±(1.2% 1) 40MΩ 10kΩ ±(2.0% 3) Capacitance 4nF/40nF/400nF 1pF/10pF/0.1nF ±(4.0% 10) 4µF/40µF/100µF 1nF/10nF/100nF ±(4.0% 10) Frequency 40Hz/400Hz/4kHz 0.01Hz/0.1Hz/1Hz ±(2.0% 1) 40kHz/100kHz 10Hz/0.1kHz ±(2.0% 1) Duty Cycle 0.1%~99.9% 0.10% ±(2.0% 2) Temperature -40℃~0℃ 1℃ ±(1.0% 6) 1℃~400℃ 1℃ ±(1.0% 3) 401℃~750℃ 1℃ ±(1.0% 5)
